🌻cutting width
100 cm
🌻maximum grass height
150 cm
🌻engine manufacturer
Vanguard
🌻engine designation
V-Twin 3864   4-stroke engine, 2-cyl.
🌻displacement
627 cm³
🌻maximum power
17,2/23,0 kW (hp)
🌻rated power
15,5/21,1 kW (hp)
🌻rated speed
3600 rpm
🌻starting device
electric
🌻Hydrostatic drive on caterpillar track
Yes
🌻number of gears
stufenlos
🌻reverse gear
Yes
🌻max. speed
5 km/h
🌻automatic parking brake
Yes
🌻blade clutch
mechanical
🌻closed mowing deck
Yes
🌻flail pairs
56
🌻flail shape
Y
🌻cutting height
40 - 110 mm
🌻both sides of the flails can be used
Yes
🌻tank capacity
12 l
🌻dimension L/W/H
184x115x69 cm
🌻weight
419 kg

Versatile mower setting

One mowing deck – countless possibilities: optimal control via roller with anti-scalp function, adjustable sliding frame or carried insert for perfect adaption to different terrain conditions.

Mowing close to the edge

The 100 cm wide flail mower and the somewhat narrower undercarriage enable comfortable mowing close to the edge, down to a few centimetres along obstacles.

Optimal power transmission

The enormous power of the Vanguard Professional 2-cylinder engine is transmitted directly and with low loss via two belts to the blade shaft. The torque is divided between two robust belts.

Extreme mowing performance

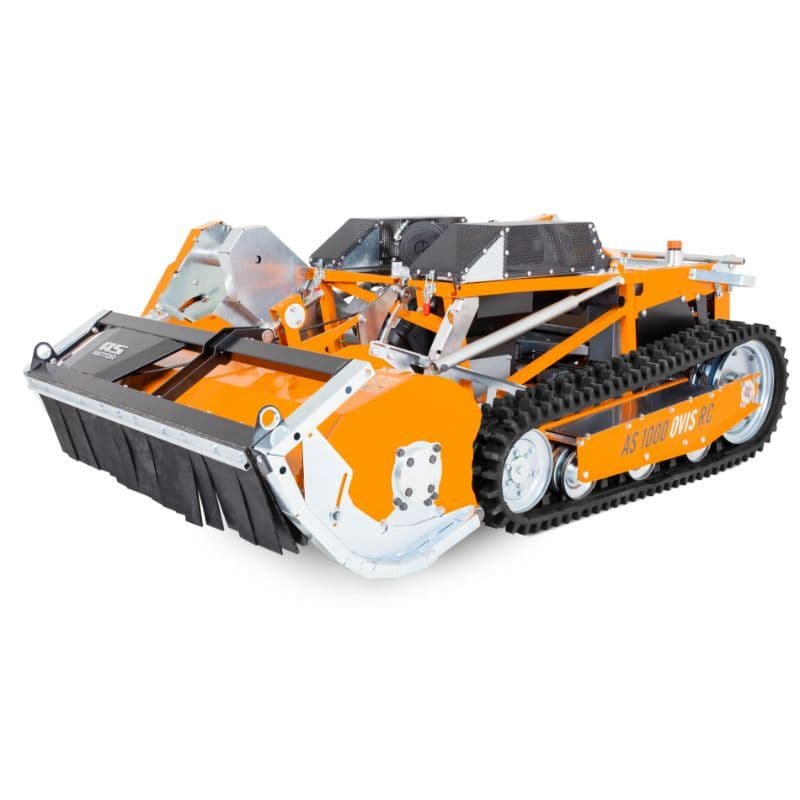

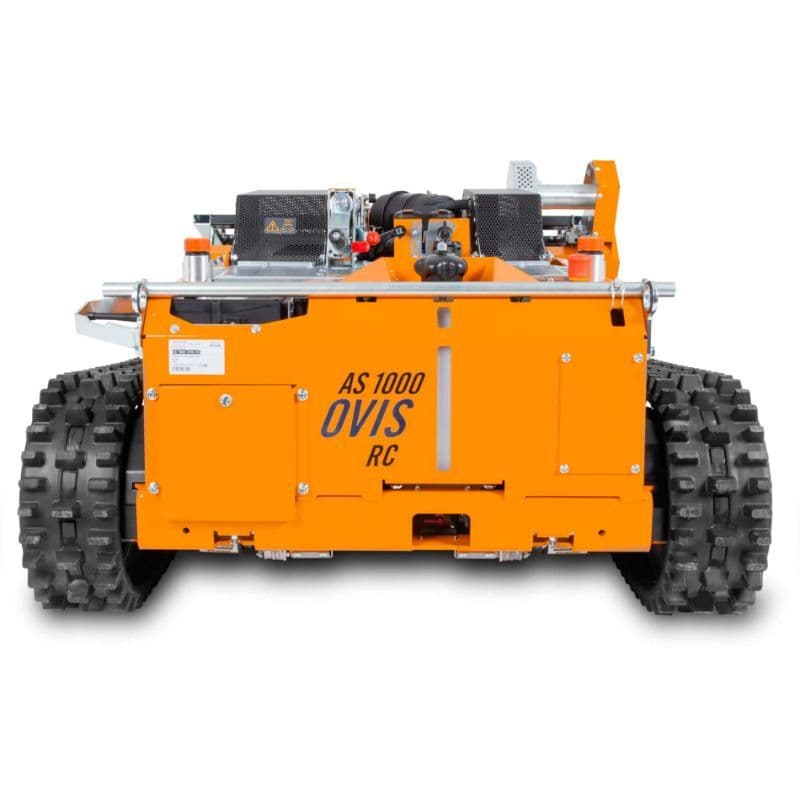

The AS 1000 Ovis RC has all the well-known advantages of the proven flail mower: maximum mowing speed, excellent cutting pattern and even grass placement.

Compact design

The low operating weight (only 419 kg) and the compact dimensions (184 cm / 115 cm / 69 cm) allow mowing under deep obstacles and on steep slopes.

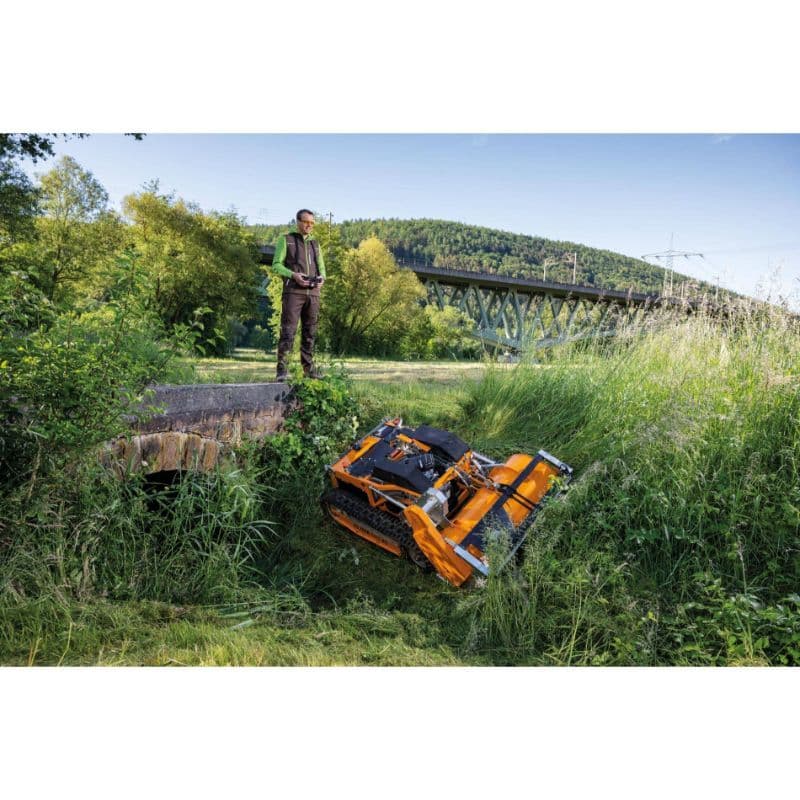

Extreme suitability for slopes

Low-seated horizontal Vanguard Professional engine and lowest overall height of only 69 cm – the prerequisites for the low centre of gravity position and extreme slope suitability.

Intuitive operation

Clear operating elements and accurate controls are the basis for precise manoeuvring of the machine. Robust hydraulic motors with their enormous torque ensure powerful traction drive.

Simple maintenance

The flail mower only needs service every 400 operating hours (first service after 50 h). Excellent accessibility for daily cleaning and servicing. Easy maintenance position for the flail mower.

Enormous mowing performance and individually adjustable to every requirement

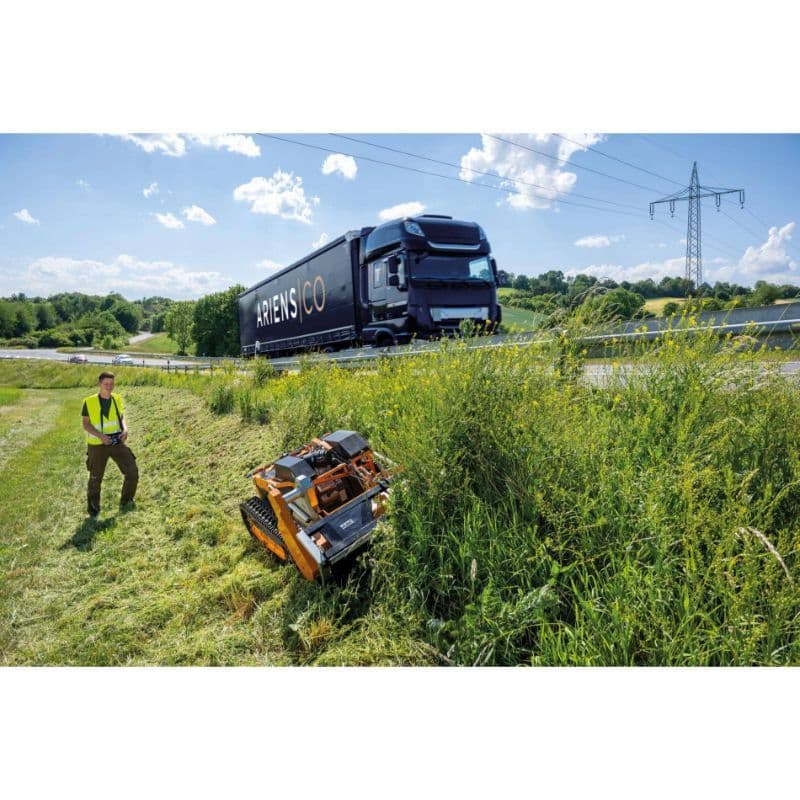

The AS 1000 Ovis RC offers a wide range of adjustment possibilities with its surfing mowing deck. Thanks to the large up and downward swing, the robust flail mower adapts perfectly to uneven ground and prevents damage to the turf. Optimal control via roller (including anti-scalp function), adjustable sliding frame or carried insert without contact to the ground for maximum traction in difficult terrain – choose your personal setting for perfect adaption to all terrain conditions. The 100 cm wide flail mowing deck with stepless cutting height adjustment and the somewhat narrower undercarriage also enable comfortable mowing close to the edge, down to a few centimetres along crash barriers or other obstacles.

Optimum power transmission

The enormous power of the horizontal Vanguard Professional V-engine is optimally utilised. It is directly and efficiently transmitted to the mower deck via a belt drive. The proven Vanguard engine with 23 hp maximum power impresses with a 3-year warranty as well as its stable and robust construction. The components from the Yak series – e.g., the robust flail mower deck and the belt pressure spring tensioner – are used in the new AS 1000 Ovis RC.

Simplest handling and maintenance

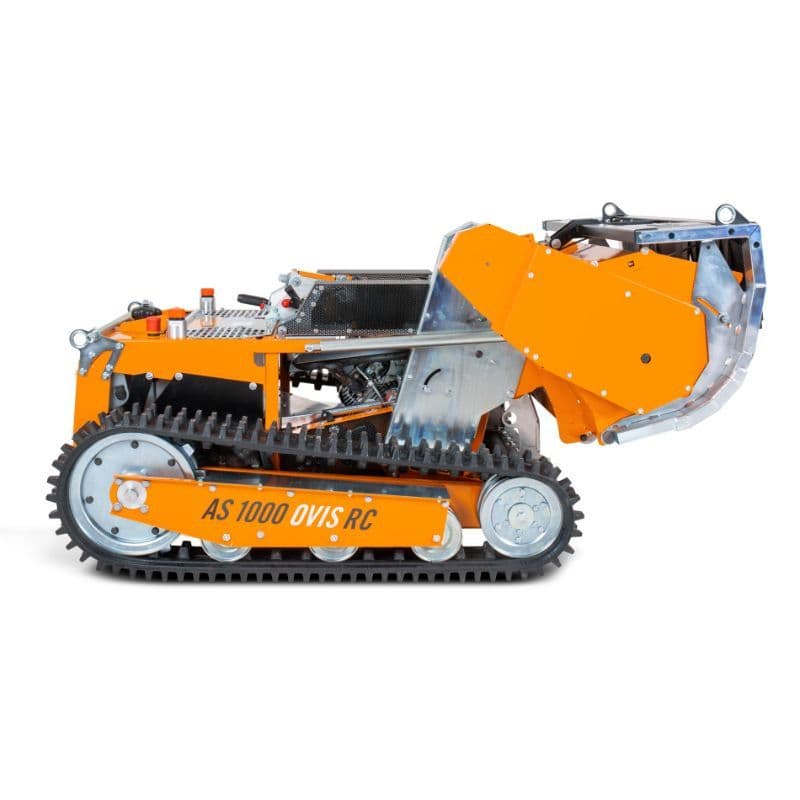

Stable caterpillar tracks with steel inserts provide maximum traction on steep slopes. The assembly of the belts is quickly done thanks to the integrated quick tensioning system and defined adjustment for exact track tension. An automatic, mechanical parking brake brings additional safety when working on slopes. With its compact dimensions of 184 cm / 115 cm / 69 cm (only 159 cm long with the mower deck raised), the remote-controlled flail mower can be transported easily and quickly.

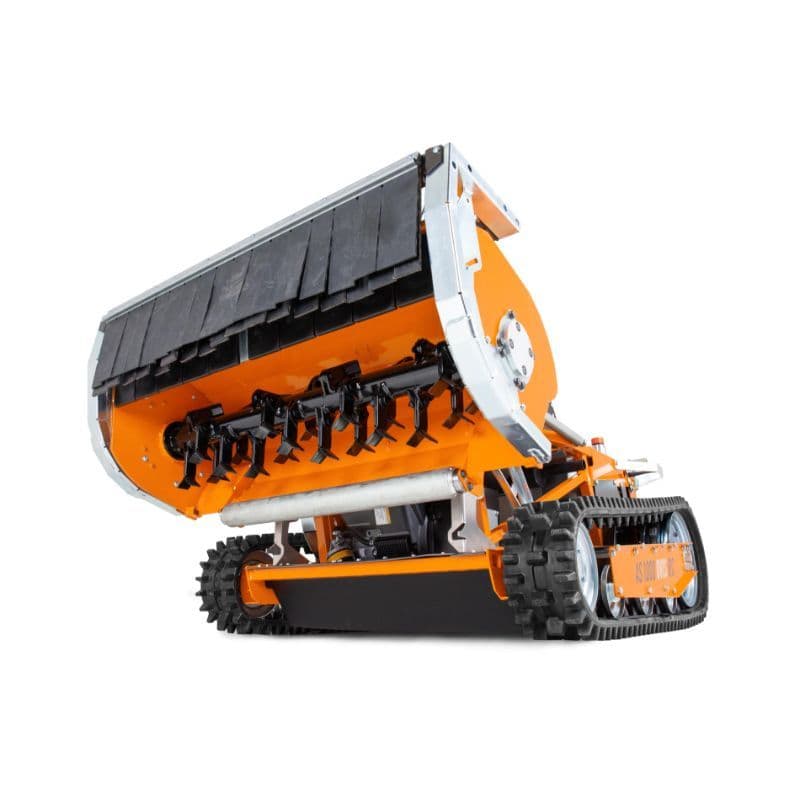

Maintenance-free shaft bearings, robust hydraulic motors from large-scale production and a large-volume fuel tank are the basis for long working days in difficult terrain and high grass. For daily cleaning tasks, the AS 1000 Ovis RC offers excellent accessibility. Air ducts, filters and oil control are accessible without any tools and the mower deck can be easily placed in a service position. Important components can be quickly reached through foldable service covers. The AS 1000 Ovis RC also requires very little maintenance: maintenance interval of 400 operating hours and first service after 50 h.
