Stihl TSA 300 12
Stihl TSA 300 12
Stihl TSA 300 12
Stihl TSA 300 12

Product Description

THIS IS A BARE TOOL UNIT, PLEASE SELECT YOUR BATTERY AND CHARGER SEPARATELY

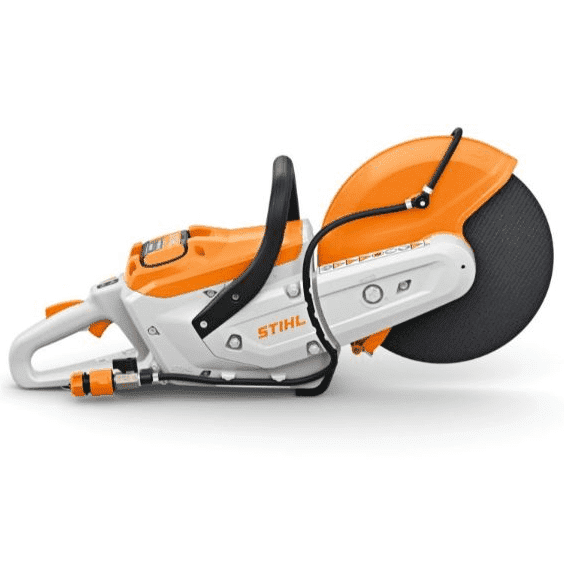

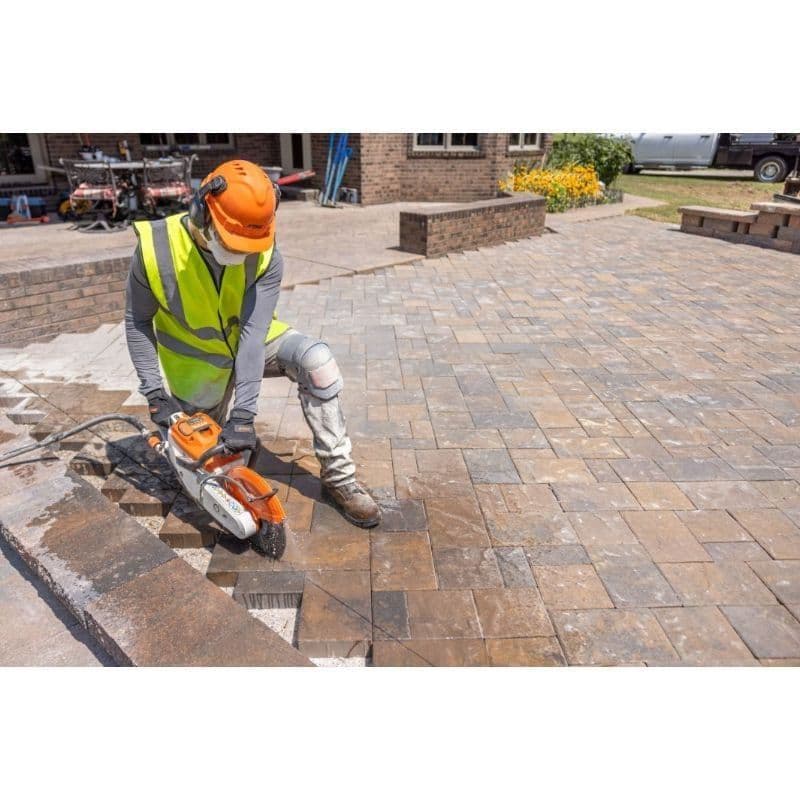

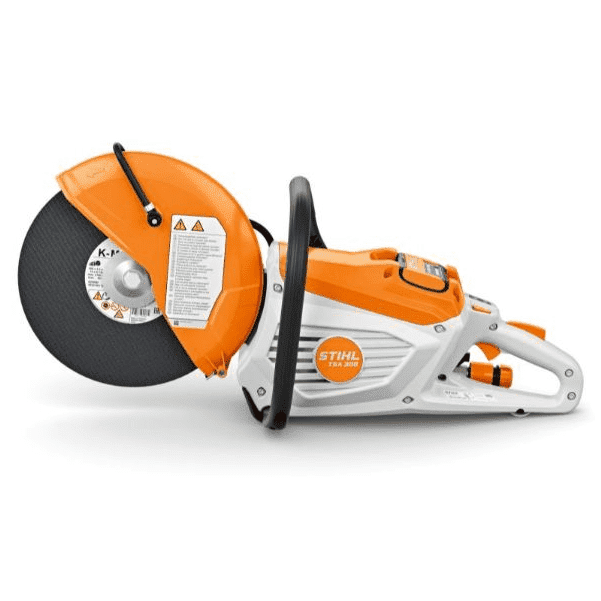

The TSA 300 is a 12” (300 mm) battery-powered cut-off machine in the STIHL AP System. It’s exceptionally easy to handle thanks to its compact and well-balanced design and is designed for professionals working in construction, hardscaping and pipework – making it an ideal choice for processing materials such as bricks, paving stones, natural stone, concrete, reinforced concrete and rebar.

Fitted as standard with a K-ME abrasive cutting wheel, the TSA 300 has cutting performance that is comparable to the TS 410 petrol cut-off machine because of the narrow cutting kerf. This is achieved thanks to the lack of engine vibrations. It increases precision when making cuts, meaning you can achieve accurate results at all times and allows for a maximum cutting depth of 4.3" (110 mm). You can also fit the TSA 300 with a D-SB90 diamond cutting wheel.

The TSA 300 must be used with the AP 500 S battery for maximum performance. If you use an AP 200 S or AP 300 S, there will be a reduction in performance. On a full charge with the AP 500 S, the TSA 300 has a working time of 20 minutes.
Read More

Technical Specs

Size
12"
Brand
Stihl
Product Code
ST-TSA300SHELL
Weight
6.3kg

Customer reviews

No reviews left yet
Write A Review

THIS IS A BARE TOOL UNIT, PLEASE SELECT YOUR BATTERY AND CHARGER SEPARATELY

The TSA 300 is a 12” (300 mm) battery-powered cut-off machine in the STIHL AP System. It’s exceptionally easy to handle thanks to its compact and well-balanced design and is designed for professionals working in construction, hardscaping and pipework – making it an ideal choice for processing materials such as bricks, paving stones, natural stone, concrete, reinforced concrete and rebar.

Fitted as standard with a K-ME abrasive cutting wheel, the TSA 300 has cutting performance that is comparable to the TS 410 petrol cut-off machine because of the narrow cutting kerf. This is achieved thanks to the lack of engine vibrations. It increases precision when making cuts, meaning you can achieve accurate results at all times and allows for a maximum cutting depth of 4.3" (110 mm). You can also fit the TSA 300 with a D-SB90 diamond cutting wheel.

The TSA 300 must be used with the AP 500 S battery for maximum performance. If you use an AP 200 S or AP 300 S, there will be a reduction in performance. On a full charge with the AP 500 S, the TSA 300 has a working time of 20 minutes.
🌻Power    2.5 kW
🌻Rated voltage    36 V
🌻Weight    6.3 kg
🌻Sound pressure level    105 dB(A)
🌻Sound power level    116 dB(A)
🌻Vibration level, left    3 m/s²
🌻Vibration level, right    2.3 m/s²
🌻Total device length    74.2 cm
🌻Cutting disc diameter    300 mm
🌻Max. cutting depth    110 mm
🌻Recommended battery    AP 500 S
🌻Battery working time AP 200 S (Power level 1)    9 min
🌻Battery working time AP 300 S (Power level 1)    up to 16 min 1)
🌻Battery working time AP 500 S (Power level 1)    0-20 min
🌻Battery system    AP
🌻IPX Rating    IPX4

As the TSA 300 is battery-powered, it has low noise emissions during cutting. It is fitted with a powerful EC motor which operates almost wear-free, is quiet and has smooth running and low vibrations – it also ensures the tool operates at optimum performance throughout the entire battery charge. Fitted with a STIHL magnetic filter which passes cooling air through several magnets, protecting the internal components from metal dust and particles. These magnets can be easily removed for fast cleaning, ensuring a long-service life.

This tool is fitted with a fast-stop brake that recuperates energy into the battery. After releasing the trigger, the wheel is stationary in less than 4 seconds which loads the energy from the TSA 300 back into the battery, which increases your working time. As the TSA 300 is battery-powered and has zero emissions, it can also be used indoors. It also has a LED display on the handle which provides you with information such as operating speed and an overheating warning.

LOW-MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the EC motor enables you to work in an energy efficient manner. This engine also has a long service life.

EC MOTOR

ERGONOMIC HANDLE

FOR PRECISE GUIDANCE. With the ergonomic handle, you can keep a firm grip on your tool and carry out cuts precisely, even when dealing with very hard stone. The curved handle offers you an optimised grip position and the highest level of comfort when working.

Ergonomic grip position

FAST-STOP BRAKE

EFFICIENT WORK. When you release the control lever on your cut-off machine, the cut-off wheel will brake automatically within a few seconds. In addition, the energy gained is fed back into the battery (recuperation), improving its operating time.

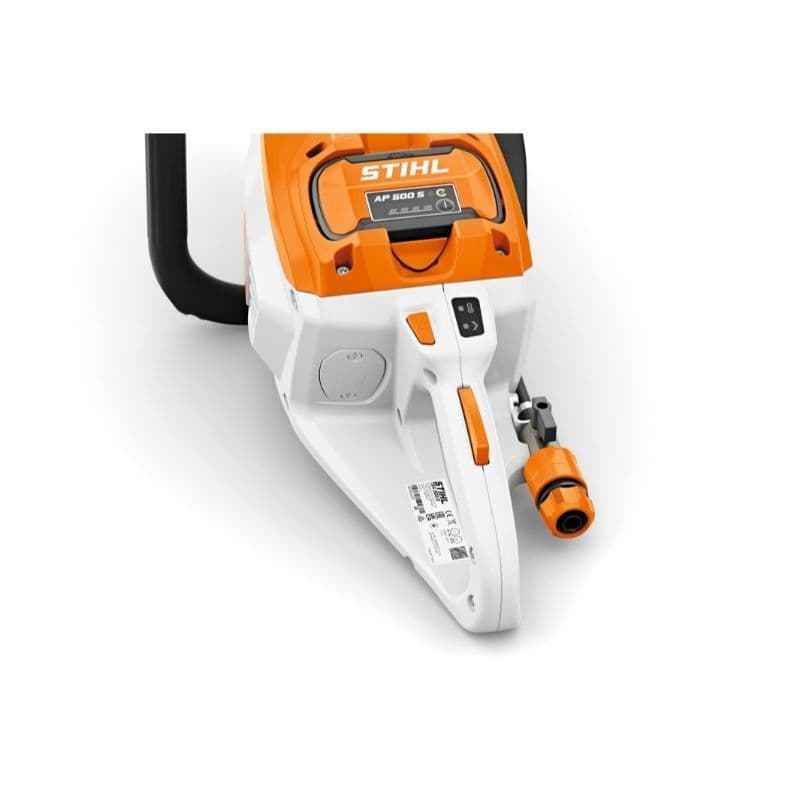

CONTROL PANEL

EASY TO OPERATE AND CONTROL. The control panel with large on/off button is easy to operate and has good visibility from above. The 2 LEDs make it easy to read the status of the machine.

CONTROL PANEL

STIHL MAGNETIC FILTER

LONG SERVICE LIFE. Magnets in the cooling air flow intercept ferromagnetic particles from the air so that they do not reach the motor. This protects the motor and enables a long service life with consistently high performance. The filter can be easily removed, cleaned and reinstalled after work if required.

MAGNESIUM GUARD

LIGHTWEIGHT AND STABLE. The cutting wheel guard ensures that you are not hit by flying cut material or cooling water from the cutting wheel. The cast magnesium guard is very lightweight and robust.

MAGNESIUM GUARD

POWER BOOST

MAXIMUM PERFORMANCE INCREASE. Thanks to intelligent electronics, STIHL power tools and batteries communicate with each other. If the device and battery are equipped with the POWER BOOST function, the battery always provides the maximum possible power for the respective application. In order to ensure optimum battery life, the device temporarily adjusts the power if it is used too intensively.

POWER BOOST

CONSTANT POWER

When using other brands of battery tools, the performance can sometimes decrease during work as the battery discharges. This isn't the case with STIHL battery-powered tools. Thanks to the intelligent electronics, your tool will work with consistently high power across the entire battery charge, until there is no energy left in the battery.

CONSTANT POWER

SEMI AUTOMATIC DRIVE BELT TENSIONING

Light, consistent re-tensioning increases the service life of the belts and shaft bearings.

Semi automatic drive belt tensioning

CONNECTIVITY (READY)

COMPATIBLE WITH THE SMART CONNECTOR 2A. You can mount a Smart Connector 2 A in the housing of the power tool at the dedicated position. Once installed, this connects to the control unit and transmits valuable power tool data to your smartphone, tablet or the STIHL connected Box that is within range. You can use the STIHL connected App and the STIHL connected Portal to view the STIHL connected gathered data and benefit from additional functions.

CONNECTIVITY (READY)

WATER CONNECTION

FOR DUST BINDING AND COOLING. When working with your tool, a permanent water supply is provided for flushing the cutting wheel. It is used to bind dust and cool the cut. With the water connection directly on the tool, this rinsing is easy and permanently assured.

Water supply

IPX4 CERTIFIED

SPLASHWATER PROTECTION. The AP 200 S is IPX4 certified thanks to the encapsulated electronics and sealing of each individual cell. It means that the battery is protected against splashwater from all sides and can be used in rainy conditions.

IPX4 CERTIFIED
